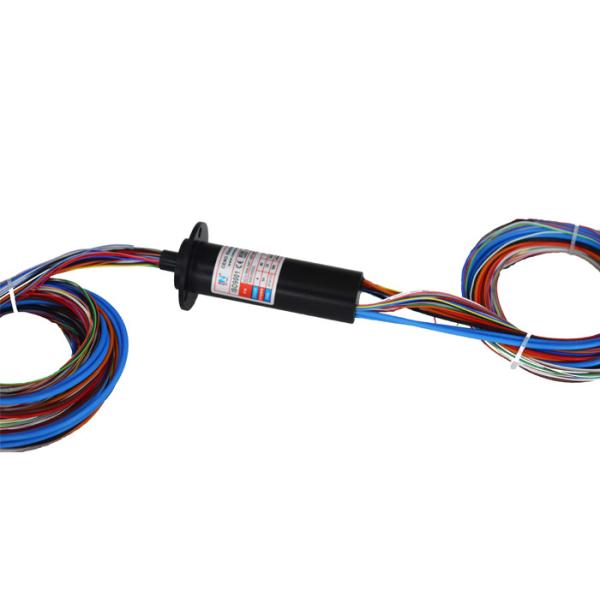

1750MHz Frequency Range Miniature capsule slip ring integrate RF Signal
This is compact size capsule slip ring, it integrates 2 circuits RF signal,with RG178 coaxial cable. RF high frequency/microwave coaxial rotary joint is used in the 360° continuous rotation devices to transfer DC~80GHz high frequency signals. Application for satellite Antenna,vehicle,radar,Microwave antenna test etc.
Specification
| ACN-56A-04P1-40P-02RF | Picture |
| Current | 4*6A,40*2A,2*RF signal |  |
| Voltage | 0~240VAC/VDC |
| Electrical noise | ≤35mΩ(50rpm) |
| Dielectric strength | ≥500V@50Hz(power) ≥100V@50Hz(signal) |
| Insulation resistance | ≥100MΩ@500VDC(power) ≥10MΩ@100VDC(signal) |
| Operating speed | 0-50 rpm |
| Contact material | precious metals |
| RF connector | SMA-J/SMA-J |
| Frequency range | 930-1750 MHz |
| Isolation | >20 dB |
Features
- Compact size
- Low noise,low torque,smooth rotation
- Power integrate RF signal
Applications
- Radar antenna
- Wind turbine equipment
- Robot arm
- Instrument
Optional
- Circuit number
- Current rating
- Lead wire length
- IP protection grade
Outline drawing
Q: How does slip ring work?
A: A slip ring is an electrical connection designed to pass the flow of current from a stationary device to a rotating one.This electromechanical device is also known as a rotary electrical connector or rotary electrical joint. Electrical slip rings are free to rotate without limitations, unlike cables which twist and eventually break.In general, conductor rings are mounted on the rotor and terminated with leadwires that run axially through the rotor to one end. Brushes are secured by a brush holder that is mounted to the housing.Electrical slip rings work by holding a sliding contact (brush) against a ring (conductor ring). One part, typically the brush, is stationary while the other, typically the conductor ring, rotates.Electrical components incude the brush, contact ring, and electrical connectors.They are made of precision materials are selected based on requirements such as current size, voltage drop, rotational speed, temperature, resistance variation, bandwidth, and characteristic impedance.
Q: What applications are they used?
A: Typical applications refers revolving automation or control systems such as turntables, index tables, and robots. Wind turbines, semiconductor processing, printing plastic molding, CNC and MRI medical scanners, satellite communications, beverage bottle filling process, and industrial filling machine are also common slip ring applications.
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Why choose CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.
Honor
ISO9001,CE,RoHS,UL,Explosion-proof
Service CENO provides
Solution offerring for 360° rotation system.
Mass and customized production.
24 hours,7days consultant service.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
